AIR & MULTIPURPOSE HOSE

Series 1200 Polyflex PVC Air & Water Hose

Tube:

Black PVC (ARPM Class B ORS)

Cover:

Blue PVC (ARPM Class B ORS)

Reinforcement:

Multiple textile spirals

Temperature Range:

-15 Deg. F. to +158 Deg. F.

Design Factor:

4:1

Branding:

Ink Brand – White or Black lettering

Origin:

USA

Applications:

“Polyflex” Series is designed for air, water, and moderate chemical applications. Ideal for in-plant applications that require an economical general purpose hose. Excellent air supply line for pneumatic tools and paint spray systems.

PRODUCT BULLETIN

Part Number	I.D. (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Coil Length	Stock (Yes) or Min. Order
1200BL-025	1/4	.45	300	.06	500'	Yes
1200BL-038	3/8	.60	300	.09	500'	Yes
1200BL-050	1/2	.78	300	.15	500'	5000'
1200BL-063	5/8	.875	200	.20	500'	5000'
1200BL-075	3/4	1.03	250	.24	300'	5000'
1200BL-100	1	1.32	200	.35	300'	5000'

Note: Red – “RD”; Blue – “BL”; Yellow – “YL”; Gray – “GY”; Black – “BK”

Minimum Order (colors other than blue):

1/4″ to 1/2″ – 10,000 ft

5/8″ to 1″ – 5,000 ft

Series 2190 Paint Spray Air Hose – Red

Tube:

Synthetic rubber (ARPM Class B ORS)

Cover:

Red synthetic rubber

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to +210 Deg. F.

Design Factor:

4:1

Branding:

Ink brand – white letters

Origin:

USA

Applications:

General purpose and spray finishing air hose for finishing, industrial, construction, and agricultural applications. Special dimension to accommodate reusable fittings (Binks Style).

PRODUCT BULLETIN

Part Number	I.D. (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2190-25250	1/4	.500	250	.10	500'	Yes
2190-31250	5/16	.625	250	.14	500'	Yes
2190-38250	3/8	.687	250	.18	500'	Yes

Series 2192 Multi-Purpose Hose – Red

Tube:

Black EPDM (ARPM Class C ORS)

Cover:

Red EPDM

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to 210 Deg. F.

Design Factor:

4:1

Branding:

Ink brand – white letters

Origin:

USA

Applications:

Economical and versatile general purpose hose. Excellent for air and water service as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone and weathering. This hose exceeds ARPM Class C oil resistance requirements. Suitable for applications such as oil mist lubricating air lines, but NOT suitable for the transfer of petroleum products.

PRODUCT BULLETIN

Part Number	I.D. (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Approx. Reel Length	Stock (Yes) or Min. Order
2192-25250	1/4	.53	250	.09	750'	Yes
2192-25300	1/4	.53	300	.10	750'	Yes
2192-38250	3/8	.70	250	.16	750'	Yes
2192-38300	3/8	.70	300	.17	750'	Yes
2192-50200	1/2	.81	200	.20	700'	Yes
2192-50300	1/2	.84	300	.22	700'	Yes
2192-63200	5/8	.97	200	.27	700'	Yes
2192-75200	3/4	1.12	200	.34	500’	Yes
2192-75300	3/4	1.15	300	.37	500’	Yes
2192-100200	1	1.44	200	.54	400’	Yes
2192-100300	1	1.48	300	.58	400’	Yes
2192-125200	1 1/4	1.73	200	.75	300'	Yes
2192-150200	1 1/2	1.98	200	.86	250'	Yes
2192-200200	2	2.50	200	1.16	200'	Yes

Series 2193 Multi-Purpose Hose – Black (200 PSI)

Tube:

Black EPDM (ARPM Class C ORS)

Cover:

Black EPDM

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to +210 Deg. F.

Design Factor:

4:1

Branding:

Ink brand – white letters

Origin:

USA

Applications:

An economical and versatile general purpose hose. Excellent for air and water service, as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone and weathering. This hose exceeds ARPM Class C medium oil resistance requirements. Suitable for applications such as oil mist lubricating air lines, but NOT suitable for the transfer of petroleum products.

PRODUCT BULLETIN

Part Number	I.D. (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2193-25200	1/4	.50	200	.09	750'	Yes
2193-38200	3/8	.67	200	.14	750'	Yes
2193-50200	1/2	.81	200	.20	700'	Yes
2193-63200	5/8	.97	200	.26	700'	Yes
2193-75200	3/4	1.12	200	.35	500'	Yes
2193-100200	1	1.39	200	.54	400'	Yes
2193-125200	1 1/4	1.73	200	.67	400'	Yes
2193-150200	1 1/2	1.98	200	.79	300'	Yes
2193-200200	2	2.56	200	1.13	100'	2500'

Series 2194 Multi-Purpose Hose – A ORS (Non-Conductive)

Tube:

Black Nitrile (ARPM Class A ORS)

Cover:

Red Nitrile/PVC (ARPM Class B ORS)

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to +210 Deg. F.

Design Factor:

4:1

Branding:

Ink brand – white letters

Origin:

USA

Applications:

A premium quality, multi-purpose hose with excellent fl exibility and maximum resistance to air, water, petroleum oils, and lubricating oils. Approved for breathing applications such as supplied air respirators. The non-conductive construction has a minimum one megohm resistance per inch at 1000 volts DC.

PRODUCT BULLETIN

Part Number	I.D. (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2194-25300	1/4	.54	300	.09	700’	Yes
2194-38300	3/8	.69	300	.17	700’	Yes
2194-50300	1/2	.86	300	.22	700’	Yes
2194-75300	3/4	1.19	300	.36	500’	Yes
2194-100300	1	1.50	300	.54	500’	Yes
2194-125250	1 1/4	1.77	250	.67	300’	Yes
2194-150250	1 1/2	2.08	250	.85	300’	Yes

Series 2196 Yellow Multi-Purpose – Yellow

Tube:

Black EPDM (ARPM Class C ORS)

Cover:

Yellow EPDM

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to +210 Deg. F.

Design Factor:

4:1

Branding:

Ink brand

Origin:

USA

Applications:

Economical and versatile general purpose hose. Excellent for air and water service as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone and weathering. Suitable for applications such as oil mist lubricating air lines, but NOT suitable for the transfer of petroleum products.

PRODUCT BULLETIN

Part Number	I.D. (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2196-50250	1/2	.81	250	.19	600’	Yes
2196-75250	3/4	1.15	250	.35	600’	5000’
2196-75300	3/4	1.15	300	.35	600’	5000’
2196-100250	1	1.44	250	.54	400'	5000’

GORILLA® Air & Multipurpose Hose

Tube:

Nitrile synthetic rubber, RMA Class A (High Oil Resistance)

Cover:

Yellow Carbryn™ synthetic rubber, RMA Class A (High Oil Resistance) MSHA
approved

Reinforcement:

Spiral Flexten® yarn, 2″ is braided synthetic yarn

Temperature:

-20 ºF to 190 ºF (-29 ºC to 88 ºC)

Applications:

A premium-quality, multipurpose industrial hose with a wide range of applications in factories, construction, agriculture, quarries, mines, railroads, the oil and gas industry, and shipbuilding. All sizes are rated at 500 psi (3.4 MPa) maximum working pressure. Nonconductive, minimum electrical resistance greater than one (1) megaohm
per inch of hose length at 1000 Volts DC.

Item #	I.D.	Nom. O.D.	Length	Color	Max. Working Pressure	Weight
20129568	3/8 in 9.50 mm	0.730 in 18.60 mm	100.000 ft	Yellow	500.0 psi 3.45 MPa	0.220 lb/ft 0.33 kg/m
20129583	3/4 in 19.10 mm	1.190 in 30.20 mm	100.000 ft	Yellow	500.0 psi 3.45 MPa	0.410 lb/ft 0.61 kg/m
20305356	2 in 50.80 mm	2.620 in 66.60 mm	50.000 ft	Yellow	500.0 psi 3.45 MPa	1.220 lb/ft 1.82 kg/m
20026301	3/4 in 19.10 mm	1.190 in 30.20 mm	100.000 ft	Yellow	500.0 psi 3.45 MPa	0.410 lb/ft 0.61 kg/m
20316129	3/4 in 19.10 mm	1.190 in 30.20 mm	50.000 ft	Yellow	500.0 psi 3.45 MPa	0.410 lb/ft 0.61 kg/m

ARCTIC ORTAC® PLUS Air & Multipurpose Hose

Tube:

Black low-temp, ECO oil-resistant synthetic rubber, RMA Class A (High Oil Resistance)

Cover:

Black ultra-low temperature, ECO oil resistant synthetic rubber (with a blue stripe), RMA Class A (High Oil Resistance)

Reinforcement:

One textile braid

Temperature:

-65 ºF to 180 ºF (-54 ºC to 82 ºC)

Applications:

A low-temperature hose construction for air, water, oil, kerosene, fuel oil and some chemical operations where temperatures fall as low as -65 ºF (-54 ºC).

Item #	I.D.	Nom. O.D.	Length	Color	Max. Working Pressure	Weight
20146766	1 in 25.40 mm	1.500 in 38.10 mm	500.000 ft	Black	300.0 psi 2.07 MPa	300.0 psi 2.07 MPa
20159301	1/4 in 6.40 mm	0.630 in 16.00 mm	500.000 ft	Black	300.0 psi 2.07 MPa	0.160 lb/ft 0.22 kg/m
20159302	3/8 in 9.50 mm	0.750 in 19.10 mm	500.000 ft	Black	300.0 psi 2.07 MPa	0.200 lb/ft 0.28 kg/m
20159303	1/2 in 12.70 mm	0.910 in 23.10 mm	500.000 ft	Black	300.0 psi 2.07 MPa	0.270 lb/ft 0.37 kg/m
20159304	3/4 in 19.10 mm	1.180 in 30.00 mm	500.000 ft	Black	300.0 psi 2.07 MPa	0.400 lb/ft 0.54 kg/m

SUPER ORTAC® Air & Multipurpose Hose

Tube:

Nitrile synthetic rubber, RMA Class B (Medium Oil Resistance)

Cover:

Yellow Chemivic™ synthetic rubber, RMA Class B (Medium Oil Resistance), smooth finish, pinpricked, MSHA approved

Reinforcement:

Braided (1) steel wire

Temperature:

-20 ºF to 200 ºF (-29 ºC to 93 ºC)

Applications:

For heavy-duty service in handling air, water, oil, petroleum-based solvents and agricultural spray solutions.

Item #	I.D.	Nom. O.D.	Length	Color	Max. Working Pressure	Weight
20024049	1/2 in 12.70 mm	0.910 in 23.10 mm	500.000 ft	Yellow	1000.0 psi 6.90 MPa	0.340 lb/ft 0.51 kg/m
20024051	1/2 in 12.70 mm	0.910 in 23.10 mm	500.000 ft	Yellow	1000.0 psi 6.90 MPa	0.340 lb/ft 0.51 kg/m
20024052	1/2 in 12.70 mm	0.910 in 23.10 mm	100.000 ft	Yellow	1000.0 psi 6.90 MPa	0.340 lb/ft 0.51 kg/m
20024053	1/2 in 12.70 mm	0.910 in 23.10 mm	200.000 ft	Yellow	1000.0 psi 6.90 MPa	0.340 lb/ft 0.51 kg/m
20024054	3/4 in 19.10 mm	1.140 in 29.00 mm	500.000 ft	Yellow	1000.0 psi 6.90 MPa	0.440 lb/ft 0.65 kg/m
20024056	3/4 in 19.10 mm	1.140 in 29.00 mm	50.000 ft	Yellow	1000.0 psi 6.90 MPa	0.440 lb/ft 0.65 kg/m
20024057	3/4 in 19.10 mm	1.140 in 29.00 mm	100.000 ft	Yellow	1000.0 psi 6.90 MPa	0.440 lb/ft 0.65 kg/m
20024058	3/4 in 19.10 mm	1.140 in 29.00 mm	300.000 ft	Yellow	1000.0 psi 6.90 MPa	0.440 lb/ft 0.65 kg/m
20024064	1 in 25.40 mm	1.450 in 36.80 mm	500.000 ft	Yellow	1000.0 psi 6.90 MPa	0.630 lb/ft 0.94 kg/m
20024066	1 in 25.40 mm	1.450 in 36.80 mm	50.000 ft	Yellow	1000.0 psi 6.90 MPa	0.630 lb/ft 0.94 kg/m
20024067	1 in 25.40 mm	1.450 in 36.80 mm	100.000 ft	Yellow	1000.0 psi 6.90 MPa	0.630 lb/ft 0.94 kg/m
20024068	1 1/4 in 31.80 mm	1.810 in 46.00 mm	300.000 ft	Yellow	1000.0 psi 6.90 MPa	1.050 lb/ft 1.56 kg/m
20024070	1 1/4 in 31.80 mm	1.810 in 46.00 mm	50.000 ft	Yellow	1000.0 psi 6.90 MPa	1.050 lb/ft 1.56 kg/m
20024071	1 1/4 in 31.80 mm	1.810 in 46.00 mm	100.000 ft	Yellow	1000.0 psi 6.90 MPa	1.050 lb/ft 1.56 kg/m
20024072	1 1/2 in 38.10 mm	1.980 in 50.80 mm	300.000 ft	Yellow	1000.0 psi 6.90 MPa	1.080 lb/ft 1.61 kg/m
20024074	1 1/2 in 38.10 mm	1.980 in 50.80 mm	50.000 ft	Yellow	1000.0 psi 6.90 MPa	1.080 lb/ft 1.61 kg/m
20024075	1 1/2 in 38.10 mm	1.980 in 50.80 mm	100.000 ft	Yellow	1000.0 psi 6.90 MPa	1.080 lb/ft 1.61 kg/m
20024077	2 in 50.80 mm	2.550 in 64.30 mm	50.000 ft	Yellow	1000.0 psi 6.90 MPa	1.570 lb/ft 2.34 kg/m
20024078	2 in 50.80 mm	2.550 in 64.30 mm	100.000 ft	Yellow	1000.0 psi 6.90 MPa	1.570 lb/ft 2.34 kg/m
20029431	1 in 25.40 mm	1.450 in 36.80 mm	50.000 ft	Yellow	1000.0 psi 6.90 MPa	0.630 lb/ft 0.94 kg/m
20156590	1/2 in 12.70 mm	0.910 in 23.10 mm	75.000 ft	Yellow	1000.0 psi 6.90 MPa	0.340 lb/ft 0.51 kg/m
20156591	3/4 in 19.10 mm	1.140 in 29.00 mm	75.000 ft	Yellow	1000.0 psi 6.90 MPa	0.440 lb/ft 0.65 kg/m

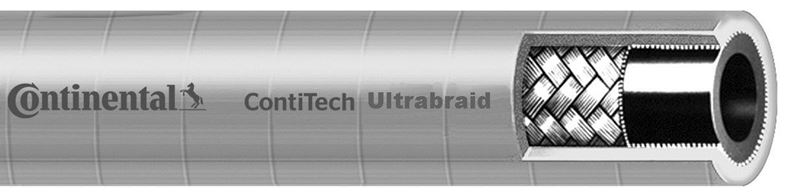

ULTRABRAID BULL HOSE

Type: Air and Multipurpose Transfer

Style: Air and Multipurpose Hose

Color: Yellow

Max. Working Pressure: 500.0 PSI / 3.45 MPa

Brands: ULTRABRAND BULL HOSE

I.D. 2 in

Length: 50.000 ft

Weight: 1.6700 lb

INSTA-GRIP™ 250 Air & Multipurpose Hose

Tube:

Nitrile synthetic rubber, RMA Class B (Medium Oil Resistance)

Cover:

Yellow Chemivic™ synthetic rubber, RMA Class B (Medium Oil Resistance), smooth finish, pinpricked, MSHA approved

Reinforcement:

Braided (1) steel wire

Temperature:

-20 ºF to 200 ºF (-29 ºC to 93 ºC)

Applications:

For heavy-duty service in handling air, water, oil, petroleum-based solvents and agricultural spray solutions.

Item #	I.D.	Nom. O.D.	Length	Color	Max. Working Pressure	Weight
20025988	1/4 in 6.40 mm	0.510 in 12.70 mm	500.000 ft	Red	250.0 psi 1.72 MPa	0.080 lb/ft 0.12 kg/m
20025994	3/8 in 9.50 mm	0.650 in 16.50 mm	500.000 ft	Red	250.0 psi 1.72 MPa	0.120 lb/ft 0.18 kg/m
20025999	1/2 in 12.70 mm	0.800 in 20.30 mm	500.000 ft	Red	250.0 psi 1.72 MPa	0.170 lb/ft 0.25 kg/m
20475078	5/8 in 15.90 mm	0.940 in 23.90 mm	500.000 ft	Red	250.0 psi 1.72 MPa	0.230 lb/ft 0.34 kg/m
20475079	3/4 in 19.10 mm	1.080 in 27.40 mm	500.000 ft	Red	250.0 psi 1.72 MPa	0.280 lb/ft 0.42 kg/m
20026001	1/4 in 6.40 mm	0.510 in 12.70 mm	500.000 ft	Black	250.0 psi 1.72 MPa	0.080 lb/ft 0.12 kg/m
20026012	3/8 in 9.50 mm	0.650 in 16.50 mm	500.000 ft	Black	250.0 psi 1.72 MPa	0.120 lb/ft 0.18 kg/m
20026030	1/2 in 12.70 mm	0.800 in 20.30 mm	500.000 ft	Black	250.0 psi 1.72 MPa	0.170 lb/ft 0.25 kg/m
20026035	5/8 in 15.90 mm	0.940 in 23.90 mm	500.000 ft	Black	250.0 psi 1.72 MPa	0.230 lb/ft 0.34 kg/m
20026037	3/4 in 19.10 mm	1.080 in 27.40 mm	500.000 ft	Black	250.0 psi 1.72 MPa	0.280 lb/ft 0.42 kg/m
20026043	1/4 in 6.40 mm	0.510 in 12.70 mm	500.000 ft	Green	250.0 psi 1.72 MPa	0.080 lb/ft 0.12 kg/m
20026046	3/8 in 9.50 mm	0.650 in 16.50 mm	500.000 ft	Green	250.0 psi 1.72 MPa	0.120 lb/ft 0.18 kg/m
20026050	1/2 in 12.70 mm	0.800 in 20.30 mm	500.000 ft	Green	250.0 psi 1.72 MPa	0.170 lb/ft 0.25 kg/m
20475077	5/8 in 15.90 mm	0.940 in 23.90 mm	500.000 ft	Green	250.0 psi 1.72 MPa	0.230 lb/ft 0.34 kg/m

Series 2150 Heavy-Duty Contractors Wire Braid Air Hose

Tube:

Black Nitrile

Cover:

Yellow Nitrile/PVC Blend

Reinforcement:

One or multiple wire

Temperature Range:

-20 Deg. F. to +212 Deg. F.

Branding:

Black Mylar / Yellow letters

Applications:

This hose is designed for the most severe service in mines, quarries, and heavy construction. The braided construction offers superior flexing without kinking and is excellent for compressor air application.

PRODUCT BULLETIN

Part Number	I.D. (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) Or Min. Order
2150-050	1/2	.89	1000	.37	100'	Yes
2150-075	3/4	1.14	1000	.57	100'	Yes
2150-100	1	1.33	800	.73	100'	Yes
2150-125	1 1/4	1.69	800	1.05	100'	Yes
2150-150	1 1/2	1.97	800	1.30	50'/100'	Yes
2150-200	2	2.54	600	1.60	50'/100'	Yes
2150-250	2 1/2	3.07	500	2.00	50'/100'	400'
2150-300	3	3.62	500	3.00	50'/100'	Yes

Series 2160 “Air Drill 300” – Textile Reinforced

Tube:

Black synthetic rubber (ARPM Class C ORS)

Cover:

Yellow SBR/EPDM blend (ARPM Class C ORS)

Reinforcement:

Multiple textile plies. (Proprietary design)

Temperature Range:

-20 Deg. F. to +180 Deg. F.

Branding:

Black Mylar / Yellow letters

Applications:

A light and flexible, yet sufficiently rugged hose, to withstand the abuse and hard service found in mining and construction. It has excellent resistance to abrasion, gouging and weathering. Specially designed for superior flexibility and kink resistance.

PRODUCT BULLETIN

Part Number	I.D (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2160-050	1/2	.81	300	.22	100'	Yes
2160-075	3/4	1.14	300	.37	100'	Yes
2160-100	1	1.46	300	.48	50'/100'	Yes
2160-125	1 1/4	1.73	300	.73	50'/100'	400'
2160-150	1 1/2	1.97	300	.85	50'/100'	Yes
2160-200	2	2.52	300	1.12	50'/100'	Yes
2160-250	2 1/2	3.18	300	1.55	50'/100'	400'
2160-300	3	3.62	300	1.86	50'/100'	400'

Series 2165 “Rock Drill 400” Textile Reinforced

Tube:

Black synthetic rubber (ARPM Class C ORS)

Cover:

Yellow SBR/EPDM blend (ARPM Class C ORS)

Reinforcement:

Multiple textile plies. (Proprietary design)

Temperature Range:

-20 Deg. F. to +180 Deg. F.

Branding:

Embossed

Applications:

A heavy-duty air hose designed for rough industrial applications as well as severe service in mines, quarries, and construction jobs. Specially designed for extreme flexibility and kink-resistance.

Series 2168 with green cover is available upon request

PRODUCT BULLETIN

Part Number	I.D. (In)	O.D. (In)	W.P. (PSI)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min Order
2165-050	1/2	.91	400	.23	100'	Yes
2165-075	3/4	1.23	400	.45	100'	400'
2165-100	1	1.47	400	.58	50' / 100'	Yes
2165-125	1 1/4	1.79	400	.74	50' / 100'	400'
2165-150	1 1/2	2.06	400	.86	50' / 100'	400'
2165-200	2	2.58	400	1.11	50' / 100'	Yes

Block

Want to speak to a professional?

1.4.3. Thank you for taking the time to visit our site. Our customer service team is available to assist you Monday through Friday, 8 a.m. to 5 p.m. For additional information pertaining to the services or products that we provide or if you need an estimate, contact one of our offices or email sales@ablehose.com.
