Material Handling | Heavy-Duty Hose

Series 1800 Polyurethane Lined PVC Material Handling Hose

Tube:

Polyurethane lined (static dissipating)

Cover:

Black HMV PVC – Convoluted

Reinforcement:

High density rigid PVC helix

Temperature Range:

-40 Deg. F. to +150 Deg. F.

PRODUCT BULLETIN

Applications:

For conveying of solids where abrasive conditions are present. Specially formulated, static-dissipating HMV PVC compound provides sub-zero flexibility. The smooth polyurethane lining eliminates material build up.

Part Number	I.D. (In)	O.D. (In)	Approx. Liner Thickness (mm)	Vacuum Rating (In Hg) @ 70°F	W.P. @ 70°F (PSI)	Bend Radius @ 70°F (In)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
1800-150	1-1/2	1.86	.6	29	50	2.0	.42	100'	Yes
1800-200	2	2.40	.7	29	40	2.0	.59	100'	Yes
1800-250	2-1/2	3.07	.9	29	40	4.0	.80	100'	1000'
1800-300	3	3.65	1.0	29	40	4.0	1.18	100'	Yes
1800-400	4	4.77	1.2	29	35	6.0	1.95	100'	Yes
1800-600	6	6.83	1.5	28	30	12.0	3.50	50’/100’	Yes
1800-800	8	9.18	2.0	28	30	18.0	5.91	20'/50'	200'

NOTE: If the ambient or application temperatures vary from the 70 Deg. F. baseline, stated specifications and ratings for the hose will change.

Series 1805 Polyurethane Lined Abrasion Resistant PVC Material Handling Hose – HD (Dry Application)

Tube:

Polyurethane lined (static dissipating)

Cover:

Blue HMV PVC – Convoluted

Reinforcement:

High density rigid PVC helix

Temperature Range:

-40 Deg. F. to +150 Deg. F.

PRODUCT BULLETIN

Applications:

For conveying of solids where high abrasive conditions are present. Specially formulated, static-dissipating HMV PVC compound provides sub-zero flexibility. The thick, smooth heavy-duty polyurethane lining eliminates material build up. Similar to Series 1800, but with a thicker liner.

Part Number	I.D. (In)	O.D. (In)	Approx. Liner Thickness (mm)	Vacuum Rating (In HG) @ 70°F	W.P. @ 70°F (PSI)	Bend Radius @ 70°F (In)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
1805-200	2	2.44	1.2	29	40	4.0	.65	100'	Yes
1805-300	3	3.70	1.8	29	40	6.0	1.23	100'	Yes
1805-400	4	4.80	2.0	29	35	10.0	2.02	100'	Yes
1805-600	6	6.87	2.3	28	30	18.0	3.84	50’/100’	Yes
1805-800	8	9.18	2.7	28	30	22.0	6.52	20'/50'	Yes

NOTE: If the ambient or application temperatures vary from the 70 Deg. F. baseline, stated specifications and ratings for the hose will change.

Series 1880 Reinforced PU Food Grade Material Hose

Construction:

Clear polyurethane with polyester braid and rigid blue PVC helix (static wire included)

Temperature Range:

-40 Deg. F. to +150 Deg. F.

Sizes:

3″ thru 6″

Colors:

Clear w/rigid blue helix

PRODUCT BULLETIN

Applications:

This hose is specially designed for the handling of abrasive material in food grade suction and discharge applications. All compound materials comply with FDA requirements.

Part Number	I.D. (In)	O.D. (In)	Bend Radius (In)	W.P. @ 70° F (PSI)	Vacuum Rating (In Hg)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
1880-300	3	3.78	10.0	70	29.8	1.18	100’	Yes
1880-400	4	4.85	12.0	65	29.8	1.58	100’	Yes
1880-500	5	5.80	14.0	45	28.0	2.47	20’/100’	Yes
1880-600	6	6.93	16.0	40	28.0	2.86	20’/100’	Yes

NOTE: If the ambient or application temperatures vary from the 70 Deg. F. baseline, stated specifications and ratings for the hose will change.

Series 2310 Premium Sandblast Hose – 2 Ply/4Ply

Tube:

Black natural rubber blend – static dissipating

Reinforcement:

Multiple textile plies

Cover:

Black SBR

Temperature Range:

-25 Deg. F. to 180 Deg. F.

Branding:

Embossed

PRODUCT BULLETIN

Applications:

Specially compounded tube is formulated to extend service life in sandblasting service. Flexible and kink resistant to reduce operator fatigue. The tube and cover are both static dissipating and the cover is resistant to abrasion and weather.

Part Number	I.D. (In.)	O.D. (In.)	Plies	W.P. (PSI)	Weight (Lbs / Ft)	Std. Length	Stock (Yes) or Min. Order
2310-050	1/2	1.060	2	150	.33	50'/100'	400'
2310-075	3/4	1.500	4	150	.64	50'/100'	400'
2310-100	1	1.875	4	150	.94	50'/100'	400'
2310-125	1-1/4	2.156	4	150	1.14	50'/100'	400'
2310-150	1-1/2	2.375	4	150	1.30	50'/100'	400'
2310-200	2	2,875	4	150	1.64	50'/100'	400'

Series 2312 Premium Sandblast Hose

Tube:

Black natural rubber blend – static dissipating

Reinforcement:

Multiple textile plies

Cover:

Green SBR

Temperature Range:

-25 Deg. F. to +180 Deg. F.

Branding:

Embossed

PRODUCT BULLETIN

Applications:

Special extra thick tube compound is formulated to extend service life in sandblasting service. Flexible and kink resistant to reduce operator fatigue. The tube and cover are both static dissipating and the cover is resistant to abrasion and weather.

Part Number	I.D. (In.)	O.D. (In.)	Plies	W.P. (PSI)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) Or Min. Order
2312-050-116	1/2	1.060	2	150	.34	50'/100'	Yes
2312-050-316	1/2	1.188	2	150	.35	50'/100'	Yes
2312-075	3/4	1.500	4	150	.68	50'/100'	Yes
*2312-100A	1	1.504	2	150	.49	50'/100'	400'
2312-100	1	1.875	4	150	1.05	50'/100'	Yes
*2312-125A	1-1/4	1.875	2	150	.78	50'/100'	Yes
2312-125	1-1/4	2.156	4	150	1.26	50'/100'	Yes
2312-150	1-1/2	2.375	4	150	1.42	50'/100'	Yes
2312-200	2	2.875	4	150	1.70	50'/100'	Yes

Denotes brown color

Series 2340 Dry Cement Handling Hose

Tube:

1/8″, 3/16″, or 1/4″ black natural rubber blend – static dissipating

Reinforcement:

Multiple textile plies

Cover:

Black SBR rubber

Temperature Range:

-25 Deg. F. to +180 Deg. F.

Branding:

White Mylar / Black letters

PRODUCT BULLETIN

Applications:

Recommended for use on bulk transport trucks in discharge service. Abrasion-resistant tube handles dry cement, lime, silica, and other abrasive materials. Static dissipating tube and cover.

Part Number	I.D. (In.)	O.D. (In.)	Tube Thickness (In.)	W.P. (PSI)	Weight (Lbs./Ft.)	Std. Length	Stock (Yes) or Min. Order
2340-40018	4	4.45	1/8	75	1.37	100'	Yes
2340-40316	4	4.57	3/16	75	1.82	100'	Yes
2340-40014	4	4.69	1/4	75	2.28	100'	Yes
2340-45018	4-1/2	4.98	1/8	75	1.64	100'	400'
2340-45014	4-1/2	5.23	1/4	75	2.65	100'	400'
2340-50018	5	5.44	1/8	75	1.80	100'	Yes
2340-50014	5	5.67	1/4	75	2.99	100'	400'
2340-60014	6	6.67	1/4	75	3.54	100'	400'

Series 2390 Hot Air Blower

Tube:

Black EPDM

Cover:

Black heat-resistant EPDM

Reinforcement:

Multiple textile spirals w/dual wire helix

Temperature Range:

-40 Deg. F. to +350 Deg. F.

Design Factor:

4:1

Branding:

Yellow Mylar/Black letters

PRODUCT BULLETIN

Applications:

This hose is specifically designed to convey hot air at 350°F continuously in the process of loading/unloading dry materials in plants or transport vehicles. The hose transfers hot air from the compressor to the storage bin/cargo bay to propel bulk product. The specially formulated EPDM tube and cover offer excellent resistance to heat as well as to weather and ozone.

Part Number	I.D. (In)	O.D. (In)	Bend Radius (In)	W.P. (PSIG)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2390-200	2	2.58	5.0	100	1.22	100’	Yes
2390-300	3	3.57	7.0	100	1.93	100’	Yes
2390-400	4	4.65	10.0	100	2.65	100’	Yes

Sandblast Deadman

Tube:

Premium-quality EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance)

Cover:

Yellow/yellow, red/blue, red/black, yellow/gray, or blue/blue EPDM, ARPM Class C (Limited Oil Resistance)

Reinforcement:

Spiral-plied synthetic yarn

Branding:

Continuous brand 3/16″ ID (4.8 mm) Sandblast Deadman. Made in USA Continental ContiTech

Temperature:

20˚F to 190˚F (-29˚C to 88˚C)

Packaging:

450’–750′ reels, maximum 2 pieces, minimum length 25′

PRODUCT BULLETIN

Applications:

The double-line Sandblast Deadman hose is for use with systems to automatically shut-off of sandblasting equipment at the operator end of the system. Used in a pneumatic closed-circuit pattern, the Deadman hose is connected to air-actuated shut valves which, in turn, are controlled at all times by the sandblast operator via a “deadman” switch at the nozzle end of the sandblast hose.

Item #					I.D.	Nom. O.D.	Max. W.P.	Weight
Yellow/Yellow	Black/Yellow	Red/Black	Yellow/Gray	Blue/Blue
20027303	20266436	20709610	20646905	20658279	3/16 in. 4.8 mm	0.44 in 11.2 mm	200 psi 1.38 MPa	0.14 lb./ft. 0.21 kg/m

Plicord® Torridair™ Hot Air Blower

Tube:

Black, STF (Super Thermo-Flo) EPDM synthetic rubber

Cover:

Black, weather-resistant, STF (Super Thermo-Flo) EPDM synthetic rubber (wrapped impression)

Reinforcement:

Spiral-plied synthetic fabric with double wire helix

Branding:

Example: Continental ContiTech Torridair™ Blower Hose 400˚F (204˚C)

Temperature:

-40˚F to 400˚F (-40˚C to 204˚C)

Packaging:

100′ lengths, coiled and poly-wrapped

PRODUCT BULLETIN

Applications:

This hose is designed to transfer hot, non-oily air, up to 400˚F (204˚C), from manifold blowers or in-plant compressors to holding tanks used in the transfer of dry bulk materials.

Item #	I.D.	Nom. O.D.	Max. W.P.	Bend Radius	Vacuum HG	Weight
20020255	2 in 50.8 mm	2.51 in 63.8 mm	100 psi 0.69 MPa	5 in 127 mm	29 in 737 mm	1.06 lb./ft. 1.58 kg/m
20020257	2-1/2 in 63.5 mm	3.00 in 76.2 mm	100 psi 0.69 MPa	6 in 152 mm	29 in 737 mm	1.35 lb./ft. 2.01 kg/m
20020260	3 in 76.2 mm	3.53 in 89.7 mm	100 psi 0.69 MPa	7 in 178 mm	29 in 737 mm	1.84 lb./ft. 2.74 kg/m
20020261	4 in 101.6 mm	4.60 in 116.8 mm	100 psi 0.69 MPa	16 in 400 mm	29 in 737 mm	2.47 lb./ft. 3.68 kg/m
20130428	6 in 152.4 mm	6.70 in 170.0 mm	100 psi 0.69 MPa	30 in 750 mm	29 in 737 mm	4.46 lb./ft. 6.65 kg/m

Pyroflex® III Hot Air

PYROFLEX_-II-HOT-AIR-Multipurpose-Hose---PLICORD_-TORRIDAIR_-Hot-Air-Blower

Tube:

White EPDM – FDA compliant

Cover:

Red Standard EPDM

Reinforcement:

Spiral-plied synthetic fabric with wire helix

Branding:

Example: Continental ContiTech Pyroflex® III Hot Air Blower FDA. Compliant Made in Canada

Temperature:

20˚F to 325˚F (-28.8˚C to 162.8˚C)

Packaging:

100′ lengths, coiled and poly-wrapped

Applications:

Pyroflex® III Hot Air is for conveying hot air with FDA-compliant tubing that can be used in unloading edible materials.

Item #	I.D.	Nom. O.D.	Max. W.P.	Bend Radius	Vacuum HG	Weight
20762191	1-1/2 in 3.81 mm	2.04 in 51.7 mm	100 psi 0.69 MPa	4 in 101.6 mm	29 in 737 mm	0.94 lb./ft. 1.40 kg/m
20762192	2 in 50.8 mm	2.55 in 64.8 mm	100 psi 0.69 MPa	5 in 127 mm	29 in 737 mm	1.24 lb./ft. 1.85 kg/m
20762193	2-1/2 in 63.5 mm	3.06 in 77.8 mm	100 psi 0.69 MPa	6 in 152.4 mm	29 in 737 mm	1.67 lb./ft. 2.49 kg/m
20762194	3 in 76.2 mm	3.56 in 90.5 mm	100 psi 0.69 MPa	7 in 178 mm	29 in 737 mm	1.97 lb./ft. 2.94 kg/m
20762195	4 in 101.6 mm	101.6 in 4.61 mm	100 psi 0.69 MPa	10 in 254 mm	29 in 737 mm	2.72 lb./ft. 4.05 kg/m

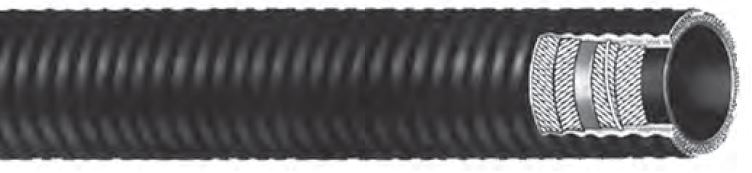

Diversiflex™

Tube:

1/4″ Black Chemituf® synthetic rubber for abrasion resistance (static dissipating/static conductive)

Cover:

Abrasion-resistant SBR synthetic rubber (corrugated surface) (wrapped impression)

Reinforcement:

Spiral-plied synthetic fabric with wire helix

Branding:

Example: Continental ContiTech Diversiflex™ Hose 75 psi Max WP

Temperature:

-25˚F to 180˚F (-32˚C to 82˚C)

Packaging:

Poly-wrapped

Applications:

Diversiflex™ provides the high strength needed to handle pressure or suction service in the movement of non-oily dry bulk materials such as salt, cement, fertilizers and dry chemicals. Typical applications include unloading hoppers to rail cars or barges and transferring materials from rail cars or barges to storage units.

Item #	I.D.	Nom. O.D.	Max. W.P.	Bend Radius	Vacuum HG	Weight
20212864	4 in 101.6 mm	4.88 in 124.0 mm	75 psi 0.52 MPa	20 in 508 mm	29 in 737 mm	3.43 lb./ft. 6.32 kg/m
20116642	5 in 127.0 mm	6.25 in 158.5 mm	75 psi 0.52 MPa	25 in 635 mm	29 in 737 mm	6.32 lb./ft. 9.41 kg/m
20325641	6 in 152.4 mm	6.92 in 175.8 mm	75 psi 0.52 MPa	36 in 914 mm	29 in 737 mm	5.84 lb./ft. 8.69 kg/m
20268121	6-5/8 in 168.3 mm	7.60 in 193.0 mm	75 psi 0.52 MPa	40 in 1016 mm	29 in 737 mm	7.04 lb./ft. 10.48 kg/m
20015474	8 in 203.2 mm	9.05 in 229.9 mm	75 psi 0.52 MPa	48 in 1219 mm	29 in 737 mm	9.22 lb./ft 13.72 kg/m
20031577	8-5/8 in 219.2 mm	9.69 in 246.1 mm	75 psi 0.52 MPa	52 in 1321 mm	29 in 737 mm	10.82 lb./ft. 16.10 kg/m
20316082	10 in 254.0 mm	11.04 in 280.4 mm	75 psi 0.52 MPa	60 in 1524 mm	29 in 737 mm	12.04 lb./ft. 17.92 kg/m
20587462	12 in 304.8 mm	13.16 in 334.3 mm	75 psi 0.52 MPa	72 in 1829 mm	29 in 737 mm	16.38 lb./ft. 24.38 kg/m
20646669	12-3/4 in 323.9 mm	19.91 in 353.3 mm	75 psi 0.52 MPa	77 in 1956 mm	29 in 737 mm	17.78 lb./ft. 26.46 kg/m

Blucor™

Tube:

3/8″ black Pureten™, 3/8″ black Chemituf® (static dissipating/static conductive), or 3/8″ tan Pureten™

Cover:

Black corrugated abrasion-resistant SBR (wrapped impression)

Reinforcement:

Spiral-plied synthetic fabric with wire helix

Branding:

Example: Continental ContiTech Blucor™ Black Pureten™ Liner

Temperature:

25˚F to 180˚F (-32˚C to 82˚C)

Packaging:

3″-8″ – Coiled or straight, poly-wrapped
10″-16″ – Straight, poly-wrapped

Applications:

Blucor™ material handling hose with the ContiTech 150 psi bolt-on split flange coupling is an easy and economical choice. Blucor™ has the high strength needed to handle pressure or suction service in the transfer of dry bulk, slurry, salt, cement, fertilizers and a limited quantity of oil-based products.

Item #				I.D.	Nom. O.D.	Max. W.P.	Bend Radius	Vacuum HG	Weight
Black Pureten	Tan Pureten	Black Chemituf®	w/ Survivor® Compound
20016075	20727995	20174317	20677611	3 in 76.2 mm	4.39 in 111.5 mm	150 psi	16 in 406 mm	29 in 373 mm	4.63 lb./ft. 6.89 kg/m
20016084	20015583	20472262	20606370	4 in 101.6 mm	5.25 in 133.4 mm	150 psi	20 in 508 mm	29 in 373 mm	5.67 lb./ft. 8.44 kg/m
20016105	20015584	20016070	20673534	6 in 152.4 mm	7.37 in 187.2 mm	150 psi	36 in 914 mm	29 in 373 mm	9.48 lb./ft. 14.11 kg/m
20016127	20091843	20616942	20710232	8 in 203.2 mm	9.44 in 239.8 mm	150 psi	48 in 1219 mm	29 in 373 mm	14.20 lb./ft. 21.13 kg/m
20016144	20015585	20099997	20548906	10 in 254.0 mm	11.38 in 289.1 mm	150 psi	60 in 1524 mm	29 in 373 mm	16.63 lb./ft. 24.75 kg/m
20032306	20015586	20050994		12 in 304.8 mm	13.81 in 350.8 mm	150 psi	72 in 1829 mm	29 in 373 mm	23.40 lb./ft. 34.82 kg/m

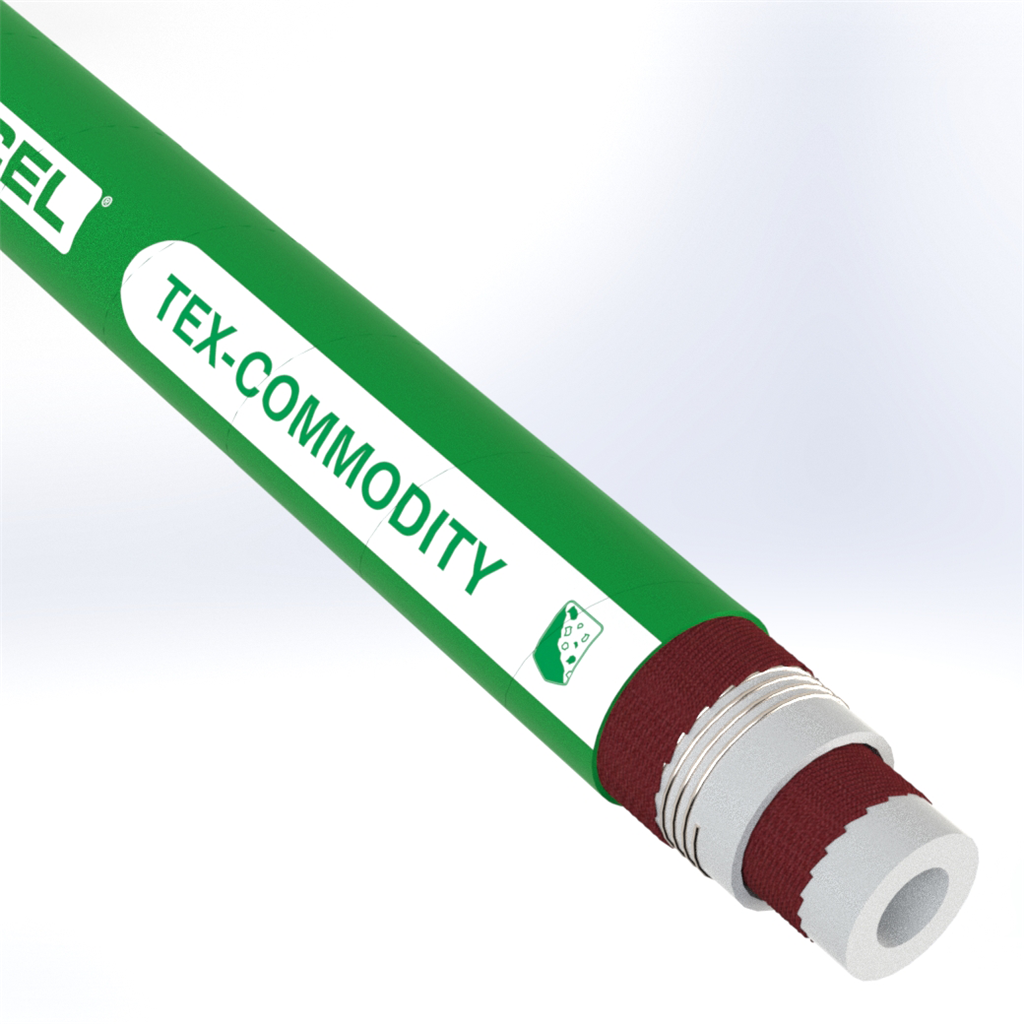

TEX-COMMODITY

8″ x 50ft Tex-COMMODITY

FDA Commodity Hose

“The premier material handling hose in the industry. Suitable for abrasive materials, wet or dry.” Also used for foodstuffs, flour, plastic pellets, etc. Ideal for sandblast return operations. Tube meets FDA requirements for food and potable water.

Tube: White, natural gum rubber
Cover: Green, SBR (corrugated)
Reinforcement: High tensile tire cord plies; helix wire

Part #	I.D.	O.D.	Tube Gauge	Std. Length	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft.
COMM-2.0	2 in	2-27/32 in	1/4 in	100 ft	150	29	5 in	2.60
COMM-2.5	2-1/2 in	3-13/32 in	1/4 in	100 ft	150	29	8 in	3.10
COMM-3.0	3 in	3-7/8 in	1/4 in	100 ft	150	29	10.5 in	3.62
COMM-4.0	4 in	4-15/16 in	1/4 in	100 ft	100	29	12 in	5.57
COMM-5.0	5 in	5-15/16" in	1/4 in	50 ft	75	28	13.5 in	7.00
COMM-6.0	6 in	6-59/64 in	5/16 in	50 ft	50	25	15 in	7.25
COMM-8.0	8 in	9-3/32 in	3/8 in	50 ft	50	20	17 in	10.80
COMM-10.0	10 in	11-5/16 in	3/8 in	25 ft	50	20	19 in	15.10
COMM-12.0	12 in	13-7/16 in	3/8 in	25 ft	50	20	25 in	18.20

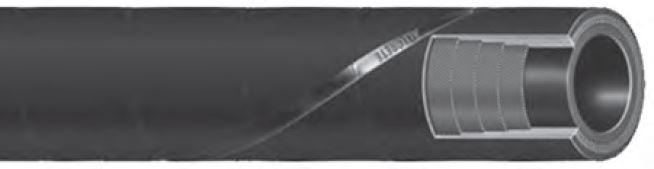

Allcrete® Textile Plaster, Grout & Concrete

Tube:

Black Chemituf® synthetic rubber

Cover:

Black SBR rubber (wrapped impression)

Reinforcement:

Spiral-plied high-strength fabric

Branding:

Example: Allcrete® Textile Ply Plaster Grout and Concrete. Continental ContiTech 2″ 1233 psi (85 bar) WP. Weight filled with concrete (150 lb./ft. 3). Exceeds ASME B30.27-2009.

Temperature:

-25˚F to 180˚F (-32˚C to 82˚C)

Packaging:

50′ lengths, coiled and poly-wrapped

Applications:

This hose is for use in plaster and grout and shotcrete applications, handling a multitude of materials being pumped to concrete structures, dams, tunnel faces, swimming pools, etc. It is also for use as a flexible connection between pumping equipment and hard piping. Exceeds ASME B30.27-2009 and has a 2:1 WP to burst ratio.

Item #	Survivor® Compound	I.D.	Nom. O.D.	Max. WP	Weight
20019934	20677614	1 in 25.4 mm	1.67 in 42.3 mm	1233 psi 8.5 MPa	0.67 lb./ft. 1.00 kg/m
20019938		1-1/4 in 32.0 mm	1.93 in 49.0 mm	1233 psi 8.5 MPa	0.80 lb./ft. 1.19 kg/m
20019942	20673536	1-1/2 in 38.1 mm	2.31 in 58.7 mm	1233 psi 8.5 MPa	1.14 lb./ft. 1.70 kg/m
20019947	20673537 (50 ft.) 20673538 (100 ft.)	2 in 51.6 mm	2.83 in 71.8 mm	1233 psi 8.5 MPa	1.46 lb./ft. 2.18 kg/m
20019960	20673539	2-1/2 in 63.7 mm	3.40 in 86.3 mm	1233 psi 8.5 MPa	1.96 lb./ft. 2.92 kg/m
20019965	20673580	3 in 76.1 mm	3.92 in 99.6 mm	1233 psi 8.5 MPa	2.39 lb./ft. 3.56 kg/m
20019971		4 in 102.1 mm	4.96 in 126.0 mm	1233 psi 8.5 MPa	3.16 lb./ft. 4.67 kg/m
20164566		5 in 127.0 mm	6.06 in 153.3 mm	1233 psi 8.5 MPa	4.22 lb./ft. 6.25 kg/m

Allcrete® Wire

Tube:

Black Chemituf® synthetic rubber

Cover:

Black SBR rubber (wrapped impression)

Reinforcement:

Spiral-plied high-strength wire

Branding:

Allcrete® Steel Reinforced Concrete Hose Continental ContiTech 3″ ID 1233 psi (85 bar) WP. Weight filled with concrete (150lb./ft.3). Exceeds ASME B30.27-2009

Temperature:

-40˚F to 180˚F (-40˚C to 82˚C)

Packaging:

50′ lengths, coiled and poly-wrapped

Applications:

Allcrete® Wire is for handling wet concrete with high head pressures at the critical flex areas of a concrete boom truck and as a discharge hose on the delivery end of high-pressure concrete pumps. This hose exceeds ASME B30.27-2009 and has a 2:1 WP to burst ratio.

Item #	I.D.	Nom. O.D.	Max. WP	Bend Radius	Weight
20032690	2 in 50.8 mm	3.01 in 3.50mm	1233 psi 8.5 MPa	9 in 275 mm	2.75 lb./ft. 4.10 kg/m
20672114	2-1/2 in 63.5 mm	3.50 in 88.9 mm	1233 psi 8.5 MPa	12 in 300 mm	3.28 lb./ft. 4.92 kg/m
20020019	3 in 76.2 mm	3.98 in 101.3 mm	1233 psi 8.5 MPa	14 in 350 mm	3.80 lb./ft. 5.65 kg/m
20020022	4 in 101.6 mm	5.02 in 127.4 mm	1233 psi 8.5 MPa	16 in 400 mm	4.90 lb./ft. 7.29 kg/m
20020026	5 in 127.0 mm	6.00 in 152.5 mm	1233 psi 8.5 MPa	20 in 500 mm	5.98 lb./ft. 8.90 kg/m

Block

Want to speak to a professional?

1.4.3. Thank you for taking the time to visit our site. Our customer service team is available to assist you Monday through Friday, 8 a.m. to 5 p.m. For additional information pertaining to the services or products that we provide or if you need an estimate, contact one of our offices or email sales@ablehose.com.
