WATER HOSE

Series 1400 EPDM / PVC Suction Hose

Tube:

Black EPDM w/Green Polyethylene Helix

Cover:

Black w/green helix

Temperature Range:

-40 Deg. F. to +140 Deg. F.

Origin:

USA

PRODUCT BULLETIN

Applications:

Heavy-duty liquid suction hose ideal for construction, dewatering, liquid waste, cesspool cleaning, septic handling, agricultural applications, and marine use. Hose is designed to remain flexible in winter conditions, lightweight, and external helix provides for easy drag. The smooth interior provides for optimum product flow. Flexible for easy handling and storage.

Part Number	I.D. (In)	O.D. (In)	W.P. @ 70°F (PSI)	Vacuum Rating (In Hg)	Bend Radius @ 70°F (In)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
1400-100	1	1.35	50	29.8	1.9	.23	100’	Yes
1400-125	1-1/4	1.66	50	29.8	3.2	.35	100’	Yes
1400-150	1-1/2	1.85	50	29.8	3.2	.41	100’	Yes
1400-200	2	2.43	50	29.8	5.2	.67	100’	Yes
1400-250	2-1/2	3.00	45	29.8	7.1	1.12	100’	Yes
1400-300	3	3.53	40	29.8	11.0	1.84	100’	Yes

Note: Other colors available

Note: If the ambient or application temperatures vary from the 70 Deg. F. baseline, stated specifications and ratings for the hose will change.

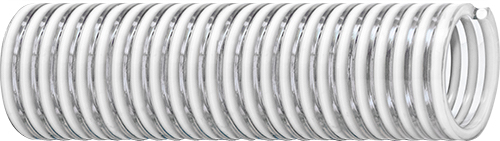

Series 1500 Clear PVC Water Suction Hose

Construction:

Clear PVC with rigid white PVC helix

Temperature Range:

-13 Deg. F. to +140 Deg. F.

Origin:

USA

PRODUCT BULLETIN

Applications:

Heavy-duty PVC suction hose for use in construction dewatering, liquid waste, cesspool cleaning, septic handling, agricultural applications, and marine use. Clear wall allows easy inspection of material flow.

Part Number	I.D. (In)	O.D. (In)	Bend Radius @ 70°F (In)	W.P. @ 70°F (PSI)	Vacuum Rating (In Hg)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
1500-075	3/4	1.01	3.0	100	29.8	.21	100’	Yes
1500-100	1	1.27	3.0	85	29.8	.27	100’	Yes
1500-125	1-1/4	1.53	4.0	85	29.8	.36	100’	Yes
1500-150	1-1/2	1.82	5.0	70	29.8	.48	100’	Yes
1500-200	2	2.32	7.0	65	29.8	.71	100’	Yes
1500-250	2-1/2	2.87	8.0	65	29.8	.96	100’	Yes
1500-300	3	3.44	10.0	60	29.8	1.25	100’	Yes
1500-400	4	4.50	15.0	50	29.8	2.01	100’	Yes
1500-500	5	5.60	22.0	45	28.0	2.45	100’	100'
1500-600	6	6.67	30.0	40	28.0	3.37	100’	Yes
1500-800	8	8.86	38.0	30	28.0	5.80	20'/40'	Yes

Note: If the ambient or application temperatures vary from the 70 Deg. F. baseline, stated specifications and ratings for the hose will change.

Series 1510 Green PVC Water Suction Hose

Construction:

Green PVC with rigid white PVC helix

Temperature Range:

-13 Deg. F. to +140 Deg. F.

Origin:

USA

PRODUCT BULLETIN

Applications:

Heavy-duty PVC suction hose for use in construction dewatering, liquid waste, cesspool cleaning, septic handling, agricultural applications, and marine use

Part Number	I.D. (In)	O.D. (In)	Bend Radius @ 70°F (In)	W.P. @ 70°F (PSI)	Vacuum Rating (In Hg)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
1510-075	3/4	1.01	3.0	100	29.8	.21	100’	Yes
1510-100	1	1.27	3.0	85	29.8	.27	100’	Yes
1510-125	1-1/4	1.53	4.0	85	29.8	.36	100’	Yes
1510-150	1-1/2	1.82	5.0	70	29.8	.48	100’	Yes
1510-200	2	2.32	7.0	65	29.8	.71	100’	Yes
1510-250	2-1/2	2.87	8.0	65	29.8	.96	100’	Yes
1510-300	3	3.44	10.0	60	29.8	1.25	100’	Yes
1510-400	4	4.50	15.0	50	29.8	2.01	100’	Yes
1510-500	5	5.60	22.0	45	28.0	2.45	100’	100'
1510-600	6	6.75	30.0	40	28.0	3.37	100’	Yes
1510-800	8	8.86	38.0	30	28.0	5.80	20'/40'	Yes

Note: If the ambient or application temperatures vary from the 70 Deg. F. baseline, stated specifications and ratings for the hose will change.

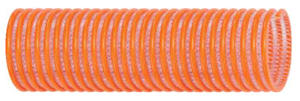

Series 1580 Reinforced PVC Water Suction/Discharge Hose

Construction:

Clear PVC w/polyester braid and rigid orange PVC helix

Reinforcement:

Polyester braiding

Temperature Range:

-13 Deg. F. to +140 Deg. F.

Color:

Clear w/rigid orange helix

PRODUCT BULLETIN

Applications:

Heavy-duty PVC suction and discharge hose designed for applications requiring combined vacuum and higher working pressures. Excellent for use as a fish suction hose and for rental/construction pumping. Clear sidewall allows for easy inspection of material flow and external helix provides for easy drag.

Part Number	I.D. (In)	O.D. (In)	Bend Radius @ 70°F (In)	W.P. @ 70°F (PSI)	Vacuum Rating (In Hg)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
1580-150	1-1/2	2.05	2.5	110	28.0	.47	100’	Yes
1580-200	2	2.62	4.0	100	28.0	.70	100’	Yes
1580-250	2-1/2	3.10	5.0	100	28.0	.82	100’	1000'
1580-300	3	3.72	6.0	100	28.0	1.13	100’	Yes
1580-400	4	4.80	7.1	75	28.0	1.74	100’	Yes
1580-600	6	7.20	10.0	70	28.0	3.88	60’/100’	Yes
1580-800	8	9.35	13.0	60	28.0	5.54	20'/25'	Yes
1580-1000	10	11.63	24.8	40	28.0	8.68	20'/25'	Yes
1580-1200	12	13.66	45.0	28	28.0	10.30	20'	Yes

Note: If the ambient or application temperatures vary from the 70 Deg. F. baseline, stated specifications and ratings for the hose will change.

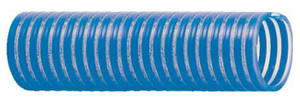

Series 1600 Low Temp PVC Suction/Discharge Hose

Construction:

Clear HMW PVC w/rigid blue PVC helix

Temperature Range:

-40 Deg. F. to +140 Deg. F.

Color:

Clear w/rigid blue helix

PRODUCT BULLETIN

Applications:

Heavy-duty HMW PVC suction hose for use in construction dewatering, liquid waste, cesspool cleaning, septic handling, agricultural applications, and marine use where low temperature flexibility is required. HMW compound provides improved abrasion resistance over standard PVC.

Part Number	I.D. (In)	O.D. (In)	Bend Radius @ 70°F (In)	W.P. @ 70°F (PSI)	Vacuum Rating (In Hg)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
1600-100	1	1.27	3.0	90	29.8	.22	100’	Yes
1600-125	1-1/4	1.56	4.0	90	29.8	.35	100’	Yes
1600-150	1-1/2	1.79	5.0	90	29.8	.48	100’	Yes
1600-200	2	2.36	7.0	90	29.8	.62	100’	Yes
1600-250	2-1/2	2.90	8.0	70	29.8	.87	100’	Yes
1600-300	3	3.44	10.0	65	29.8	1.23	100’	Yes
1600-400	4	4.50	15.0	55	29.8	1.83	100’	Yes
1600-600	6	6.69	30.0	40	28.0	3.36	100’	Yes

Note: If the ambient or application temperatures vary from the 70 Deg. F. baseline, stated specifications and ratings for the hose will change.

Series 2632 Irrigator 150

Tube:

Black EPDM

Cover:

Black EPDM

Reinforcement:

Multiple textile plies

Temperature Range:

-40 Deg F. to +180 Deg. F.

Branding:

Blue Mylar/Black Letters

Origin:

USA

PRODUCT BULLETIN

Applications:

Light, flexible water discharge hose. Specially designed for wheel-line irrigation. The EPDM tube & cover provides for excellent weathering, ozone, and abrasion resistance.

Part Number	I.D. (In)	O.D. (In)	Plies	W.P. (PSIG)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2632-300	3	3.25	2	150	.88	100'	Yes
2632-400	4	4.25	2	150	1.10	100'	Yes

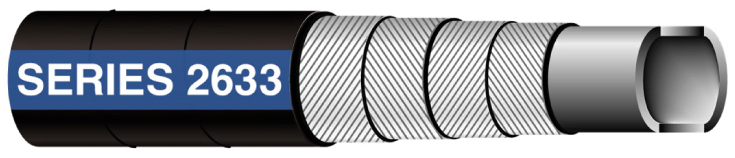

Series 2633 Medium Duty Water Discharge

Tube:

Black EPDM blend

Cover:

Black EPDM blend

Reinforcement:

Multiple textile plies

Temperature Range:

-20 Deg. F. to +180 Deg. F.

Branding:

Blue Mylar/White letters

PRODUCT BULLETIN

Applications:

Light, flexible, durable – and with 150 PSI working pressure in all sizes. This hose is the most versatile choice for many water discharge applications. Tube and cover are flexible EPDM rubber, resistant to weathering and to many light industrial and agricultural chemicals.

Part Number	I.D. (In)	O.D. (In)	Plies	W.P. (PSIG)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2633-150	1-1/2	1.80	2	150	.52	100’	Yes
2633-200	2	2.32	2	150	.65	100’	Yes
2633-250	2-1/2	2.80	2	150	.85	100’	Yes
2633-300	3	3.33	2	150	1.25	100’	Yes
2633-400	4	4.33	2	150	1.65	100’	Yes
2633-600	6	6.34	2	150	2.84	50’/100’	Yes
2633-800	8	8.55	4	150	4.15	50’/100’	Yes
2633-1000	10	10.55	4	150	5.25	50’	Yes
2633-1200	12	12.58	4	150	6.20	50’	Yes

Series 2634 Heavy Duty Water Discharge

Tube:

Black SBR

Cover:

Black SBR

Reinforcement:

Multiple textile plies

Temperature Range:

-20 Deg. F. to +180 Deg. F.

Branding:

Embossed

PRODUCT BULLETIN

Applications:

Recommended for severe water discharge service in heavy-duty industrial applications. Extra heavy wall for long service life and endurance in physically demanding applications.

Part Number	I.D. (In)	O.D. (In)	Plies	W.P. (PSIG)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2634-150	1-1/2	1.85	4	200	.93	100’	400’
2634-200	2	2.40	4	200	1.16	100’	400’
2634-250	2-1/2	2.87	4	200	1.48	100’	400’
2634-300	3	3.38	4	200	1.73	100’	400’
2634-400	4	4.41	4	200	2.23	100’	400’
2634-600	6	6.46	4	200	3.58	50’/100’	200’
2634-800	8	8.46	4	200	4.72	50’/100’	200’
2634-1000	10	10.50	4	150	5.50	50’/100’	200’
2534-1200	12	12.60	4	150	6.80	50’/100’	200’

Series 2665 Contractors Washdown-Double Jacket

Tube:

Black, natural rubber

Jacket:

White polyester – double jacket

Branding:

Double blue stripe

PRODUCT BULLETIN

Applications:

Series 2665 is a heavy duty, rubber lined, contractors washdown hose. The double jacket provides for greater abrasion resistance and higher working pressure. Excellent for washdown and discharge service. Not intended for fire fighting service.

Bulk

Part Number	I.D. (In)	Bowl Size (In)	Test (PSI)	W.P. (PSIG)	Weight 50ft. Uncoupled (Lbs.)	Std. Length
CW-150	1-1/2	1-13/16	500	250	15.0	50'/100'
CW-250	2-1/2	2-7/8	500	250	31.0	50'/100'

Assemblies

Part Number	Description	Color
A-CW-150-050-XXX	1-1/2"	White
A-CW-250-050-XXX	2-1/2"	White
