Series 2710 Multi-Purpose Food Suction & Discharge

Tube:

White, specially compounded, high-temp (FDA, 3-A, USDA compliant)

Cover:

Gray Nitrile cover

Reinforcement:

Multiple textile plies w/dual wire helix

Temperature Range:

-25 Deg. F. to +230 Deg. F.

Branding:

Blue Mylar / White letters

Design Factor:

4:1

Origin:

USA

Applications:

An exceptionally versatile sanitary hose designed to handle a wide variety of products and application requirements (Meets 3-A standards, USDA requirements and is FDA compliant). The specially compounded tube is engineered to handle high temperatures, will not impart taste or odor and is highly resistant to common CIP solutions. Manufactured on polished chrome mandrels, our mirror finish tube resists bacteria growth, while providing excellent flow rates.

Part Number	I.D. (In)	O.D. (In)	Bend Radius (In)	W.P. (PSIG)	Vacuum Rating (In Hg)	Weight (Lbs/Ft)	Stock (Yes) or Min. Order
2710-050	1/2	1.03	1.5	150	29.0	.30	Yes
2710-075	3/4	1.25	2.0	150	29.0	.46	Yes
2710-100	1	1.53	3.0	150	29.0	.56	Yes
2710-150	1-1/2	2.18	4.0	150	29.0	.85	Yes
2710-200	2	2.65	4.5	150	29.0	1.22	Yes
2710-250	2-1/2	3.19	5.8	150	29.0	1.84	Yes
2710-300	3	3.75	7.0	150	29.0	2.19	Yes
2710-400	4	4.75	10.0	150	29.0	3.10	Yes

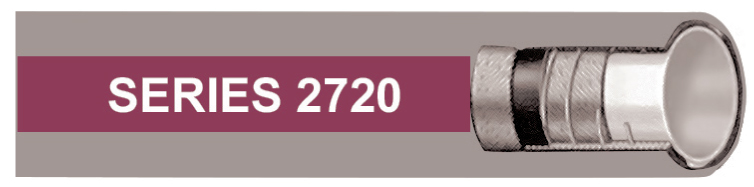

Series 2720 Rubber Crush Resistant Hose

Tube:

White, Chlorobutyl, high-temp (FDA, 3-A, USDA compliant)

Cover:

Gray EPDM

Reinforcement:

Multiple textile plies with polyester monofilament helix

Temperature Range:

-30 Deg. F. to +220 Deg. F.

Design Factor:

4:1.

Branding:

Burgundy Mylar / White letters

Origin:

USA

Applications:

A state-of-the-art sanitary hose designed to handle a wide variety of products and application requirements (Meets 3-A standards, USDA requirements and is FDA compliant). The specially compounded Chlorobutyl tube is engineered to handle high temperatures, will not impart taste or odor and is highly resistant to common CIP solutions. The polyester monofilament helix provides kink resistance and vacuum resistance. Manufactured on polished chrome mandrels, our mirror finish tube resists bacteria growth, while providing excellent flow rates. Ideal for transfer of beer, wine, and many other sanitary products.

Part Number	I.D. (In)	O.D. (In)	Bend Radius (In)	W.P. (PSIG)	Vacuum Rating (In Hg)	Weight (Lbs/Ft)	Std. Length	Stock (Yes) or Min. Order
2720-100	1	1.62	3.0	250	30	.71	100'	400’
2720-150	1-1/2	2.11	4.5	250	30	.98	100'	Yes
2720-200	2	2.68	6.0	250	30	1.38	100'	Yes
2720-250	2-1/2	3.21	12.0	250	30	1.78	100'	400’
2720-300	3	3.85	18.0	250	30	2.59	100'	Yes
2720-400	4	4.88	36.0	250	30	3.24	100'	400’

PLICORD® EXTREMEFLEX™ Food Hose

Tube:

White Chemivic™ synthetic rubber (FDA/USDA compliant and conforms to 3-A sanitary standard 18-03)

Cover:

White or gray Chemivic™ corrugated synthetic rubber (wrapped impression)

Reinforcement:

Spiral-plied synthetic fabric with galvanized wire helix

Temperature:

-25 ºF to 212 ºF (-32 ºC to 100 ºC)

Applications:

A high-tech, flexible corrugated hose with pretzel-like agility and proven performance. Best of all, it’s available at a non-corrugated price, making it a great value. With ExtremeFlex, there’s even more to appreciate:

Flexible Handling: Easier to move in and out of tight spaces and around sharp corners.
Lightweight: Easier to lift and carry, so there are fewer workplace injuries.
Lower Force to Bend: Easier to connect and disconnect, keeping productivity high.

Item #	I.D.	Nom. O.D.	Length	Color	Max. Working Pressure	Weight
20483718	2 in 50.80 mm	2.400 in 62.00 mm	100.000 ft	Gray	150.0 psi 1.03 MPa	1.000 lb/ft 1.48 kg/m
20483719	2 1/2 in 63.50 mm	3.060 in 77.60 mm	100.000 ft	Gray	150.0 psi 1.03 MPa	1.610 lb/ft 2.38 kg/m
20483781	3 in 76.20 mm	3.500 in 89.90 mm	100.000 ft	Gray	150.0 psi 1.03 MPa	1.890 lb/ft 2.79 kg/m
20483782	4 in 101.60 mm	4.600 in 116.60 mm	100.000 ft	Gray	150.0 psi 1.03 MPa	2.690 lb/ft 3.98 kg/m
20491662	2 1/2 in 63.70 mm	3.000 in 77.50 mm	6.000 ft	Gray	150.0 psi 1.03 MPa	1.610 lb/ft 2.38 kg/m
20489290	3 in 76.10 mm	3.500 in 89.90 mm	1.000 ft	Gray	150.0 psi 1.03 MPa	1.890 lb/ft 2.79 kg/m
20385366	2 in 51.20 mm	2.400 in 62.00 mm	150.000 ft	Gray	150.0 psi 1.03 MPa	1.000 lb/ft 1.48 kg/m
20478040	2 in 50.80 mm	2.400 in 62.00 mm	100.000 ft	White	150.0 psi 1.03 MPa	1.000 lb/ft 1.48 kg/m
20478041	2 1/2 in 63.70 mm	3.000 in 77.50 mm	100.000 ft	White	150.0 psi 1.03 MPa	1.610 lb/ft 2.38 kg/m
20478043	3 in 76.20 mm	3.500 in 89.90 mm	100.000 ft	White	150.0 psi 1.03 MPa	1.890 lb/ft 2.79 kg/m
20478044	4 in 101.60 mm	4.600 in 116.60 mm	100.000 ft	White	150.0 psi 1.03 MPa	2.690 lb/ft 3.98 kg/m
20531220	1 1/2 in 38.10 mm	1.900 in 48.90 mm	100.000 ft	Red	150.0 psi 1.03 MPa	0.760 lb/ft 1.13 kg/m
20531222	3 in 76.20 mm	3.500 in 89.90 mm	100.000 ft	Red	150.0 psi 1.03 MPa	1.610 lb/ft 2.38 kg/m
20531221	2 in 50.80 mm	2.400 in 62.00 mm	100.000 ft	Red	150.0 psi 1.03 MPa	1.000 lb/ft 1.48 kg/m

WHITE FLEXWING® Food Hose

Tube:

White Chemivic™ synthetic rubber (FDA/USDA compliant and conforms to 3-A sanitary standard 18-03)

Cover:

White Chemivic synthetic rubber (wrapped impression)

Reinforcement:

Spiral-plied synthetic fabric with galvanized wire helix

Pressure Range:

150 PSIG

Temperature:

-25 ºF to 230 ºF (-32 ºC to 110 ºC)

Applications:

A highly flexible hose for gravity flow, pressure, or suction service transferring oily and nonoily edibles from tank truck and in-plant service.

Item #	I.D.	Nom. O.D.	Length	Color	Max. Working Pressure	Weight
20019284	3/4 in 19.10 mm	1.200 in 30.50 mm	100.000 ft	White	150.0 psi 1.03 MPa	0.470 lb/ft 0.70 kg/m
20019286	1 in 25.40 mm	1.440 in 36.60 mm	100.000 ft	White	150.0 psi 1.03 MPa	0.570 lb/ft 0.85 kg/
20019287	1 1/4 in 31.80 mm	1.700 in 43.20 mm	100.000 ft	White	150.0 psi 1.03 MPa	0.690 lb/ft 1.03 kg/m
20019289	1 1/2 in 38.10 mm	1.970 in 50.00 mm	100.000 ft	White	150.0 psi 1.03 MPa	0.860 lb/ft 1.28 kg/m
20019292	2 in 50.80 mm	2.530 in 64.30 mm	100.000 ft	White	150.0 psi 1.03 MPa	1.230 lb/ft 1.83 kg/m
20019296	2 1/2 in 63.50 mm	3.100 in 78.70 mm	100.000 ft	White	150.0 psi 1.03 MPa	1.810 lb/ft 2.69 kg/m
20019297	3 in 76.20 mm	3.600 in 91.40 mm	100.000 ft	White	150.0 psi 1.03 MPa	2.160 lb/ft 3.21 kg/m
20019301	4 in 101.60 mm	4.640 in 117.90 mm	100.000 ft	White	150.0 psi 1.03 MPa	3.050 lb/ft 4.54 kg/m
20434789	2 in 50.80 mm	2.530 in 64.30 mm	150.000 ft	White	150.0 psi 1.03 MPa	1.230 lb/ft 1.83 kg/m
20477384	1 1/2 in 38.10 mm	1.970 in 50.00 mm	200.000 ft	White	150.0 psi 1.03 MPa	0.860 lb/ft 1.28 kg/m
20480397	1 1/4 in 31.80 mm	1.700 in 43.20 mm	400.000 ft	White	150.0 psi 1.03 MPa	0.690 lb/ft 1.03 kg/m
20494037	1/2 in 38.10 mm	0.950 in 24.10 mm	400.000 ft	White	150.0 psi 1.03 MPa	0.360 lb/ft 0.54 kg/m
20297854	2 in 50.80 mm	2.530 in 64.30 mm	400.000 ft	White	150.0 psi 1.03 MPa	1.230 lb/ft 1.83 kg/m
20297855	3 in 76.20 mm	3.600 in 91.40 mm	400.000 ft	White	150.0 psi 1.03 MPa	2.160 lb/ft 3.21 kg/m
20341074	1 1/2 in 38.10 mm	1.970 in 50.00 mm	400.000 ft	White	150.0 psi 1.03 MPa	0.860 lb/ft 1.28 kg/m

VINTNER™ Food Hose

Tube:

White Chlorobutyl (FDA/USDA compliant and conforms to 3-A sanitary standard 18-03)

Cover:

Gray EPDM(compound)® synthetic rubber (wrapped) / purple branding tape

Reinforcement:

Spiral-plied synthetic fabric with Monofilament Helix

Temperature:

-30 ºF to 220 ºF (-34 ºC to 104 ºC)

PRODUCT BULLETIN

Applications:

For handling in-plant and/or tank truck transfer of wine, beer, potable water and other nonoily, liquid foodstuffs.

Item #	I.D.	Nom. O.D.	Length	Color	Max. Working Pressure	Weight
20020354	1 in 25.40 mm	1.620 in 41.10 mm	100.000 ft	Gray	250.0 psi 1.72 MPa	0.710 lb/ft 1.06 kg/m
20020356	1 1/2 in 38.10 mm	2.110 in 53.60 mm	100.000 ft	Gray	250.0 psi 1.72 MPa	0.980 lb/ft 1.46 kg/m
20020360	2 in 50.80 mm	2.680 in 68.10 mm	50.000 ft	Gray	250.0 psi 1.72 MPa	1.380 lb/ft 2.05 kg/m
20020362	2 1/2 in 63.50 mm	3.210 in 81.50 mm	100.000 ft	Gray	250.0 psi 1.72 MPa	1.780 lb/ft 2.65 kg/m
20020364	3 in 76.20 mm	3.850 in 97.80 mm	50.000 ft	Gray	250.0 psi 1.72 MPa	2.590 lb/ft 3.86 kg/m
20020361	2 in 50.80 mm	2.680 in 68.10 mm	100.000 ft	Gray	250.0 psi 1.72 MPa	1.380 lb/ft 2.05 kg/m
20020365	3 in 76.20 mm	3.850 in 97.80 mm	100.000 ft	Gray	250.0 psi 1.72 MPa	2.590 lb/ft 3.86 kg/m
20136400	2 in 50.80 mm	2.680 in 68.10 mm	200.000 ft	Gray	250.0 psi 1.72 MPa	1.380 lb/ft 2.05 kg/m
20284293	1 1/4 in 31.75 mm	1.900 in 47.50 mm	200.000 ft	Gray	250.0 psi 1.72 MPa	0.860 lb/ft 1.28 kg/m
20304946	1 1/2 in 38.10 mm	2.110 in 53.60 mm	300.000 ft	Gray	250.0 psi 1.72 MPa	0.980 lb/ft 1.46 kg/m
20356470	1 1/2 in 38.10 mm	2.110 in 53.60 mm	150.000 ft	Gray	250.0 psi 1.72 MPa	0.980 lb/ft 1.46 kg/m
20356727	1 in 25.40 mm	1.620 in 41.10 mm	150.000 ft	Gray	250.0 psi 1.72 MPa	0.710 lb/ft 1.06 kg/m
20369404	2 in 50.80 mm	2.680 in 68.10 mm	100.000 ft	Gray	250.0 psi 1.72 MPa	1.380 lb/ft 2.05 kg/m
20455106	2 in 50.80 mm	2.680 in 68.10 mm	400.000 ft	Gray	250.0 psi 1.72 MPa	1.380 lb/ft 2.05 kg/m

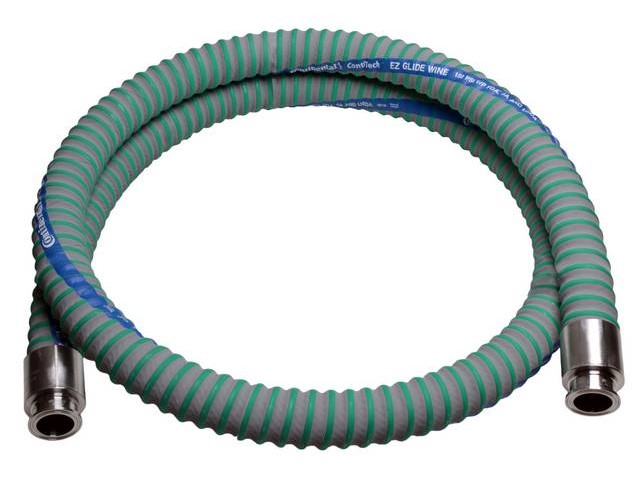

EZ GLIDE WINE™

Tube:

White chlorobutyl rubber (FDA/USDA compliance and conforms to 3-A Sanitary Standard 18-03), non-phthalates compound

Cover:

Gray Chemivic rubber and green outer helix

Reinforcement:

Synthetic fabric plies

Temperature:

-20˚F to 180˚F (Maximum 200˚F for cleaning purposes only)

PRODUCT BULLETIN

Applications:

EZ Glide Wine™ is primarily for liquid transfer. It is a quality, nontoxic hose for handling wine, potable water, and other non-oily liquid food products where the hose must meet FDA requirements. It can be used for discharge service and suction service up to 20″ HG vacuum at ambient temperature

Item #	I.D.	Nom. O.D.	Max. W.P.	Bend Radius	Vacuum HG	Weight
20829361	1-1/2 in 38.1 mm	2 .06 in 52.4 mm	150 psi 1 MPa	3 in 76 mm	20 in 508 mm	0 .93 lb./ft. 1.38 kg/m
20829362	2 in 50.8 mm	2 .59 in 65.9 mm	150 psi 1 MPa	3 in 76 mm	20 in 508 mm	1.22 lb./ft. 1.88 kg/m
20829262	3 in 76.2 mm	3 .61 in 91.7 mm	150 psi 1 MPa	5 in 127 mm	20 in 508 mm	1.85 lb./ft. 2.74 kg/m

Purple Snake®

Tube:

White, EPDM, non-porous and high-performing special lining, absolutely neutral to taste and odor. FDA compliant, and confirms to 3-A Sanitary Standard 18-03. Meets the recommendation XXI of BfR

Cover:

Red, EPDM, patterned fabric special cover, resistant to ozone, weather, UV and abrasion

Reinforcement:

Synthetic fibers

Temperature:

-22˚F to 203˚F (-30˚C to 95˚C)

Applications:

Purple Snake® is primarily for liquid transfer. In improved quality, it is the ideal hose for breweries, winepresses, bottlers and many other installations in the brewing, beverage and spirits industry. Flexibility, pressure resistance, and long service life – even under extreme working conditions – are additional advantages, making it the most popular hose all over the world. The new, optimized lining conforms to foodstuffs regulations and is absolutely neutral
to taste and odor. The tube is suitable for pure alcohol up to 98 %.

Purple Snake® is resistant to conventional cleaning agents and disinfectants. It can easily be cleaned conventionally or by CIP installations. This hose is manufactured to European standards.

Item #	I.D.	Nom. O.D.	Max. W.P.	Bend Radius	Length	Vacuum HG	Weight
20836428	1/2 in 12.7 mm	13/16 in 20 mm	232 psi 1.6 MPa	3 1/8 in 80 mm	131 ft	17 .7 in 456 mm	0.17 lb./ft. 0.25 kg/m
20836429	5/8 in 15.9 mm	15/16 in 24 mm	232 psi 1.6 MPa	4 in 100 mm	131 ft	17 .7 in 456 mm	0.20 lb./ft. 0.30 kg/m
20836430	3/4 in 19 mm	1 1/8 in 29 mm	232 psi 1.6 MPa	4-3/4 in 120 mm	131 ft	17 .7 in 456 mm	0.30 lb./ft. 0.45 kg/m
20836431	1 in 25.4 mm	1 7/16 in 48 mm	232 psi 1.6 MPa	6-5/16 in 160 mm	131 ft	14.7 in 380 mm	0.50 lb./ft. 0.75 kg/m
20836432	1-1/8 in 28.6 mm	1 5/8 in 42 mm	232 psi 1.6 MPa	7-1/16 in 180 mm	131 ft	14.7 in 380 mm	0.67 lb./ft. 1.00 kg/m
20836434	1-1/4 in 31.8 mm	1 7/8 in 48 mm	232 psi 1.6 MPa	7-1/12 in 190 mm	197 ft	14.7 in 380 mm	0.81 lb./ft. 1.20 kg/m
20836435	1-1/2 in 38.1 mm	2 3/16 in 56 mm	232 psi 1.6 MPa	9-1/16 in 230 mm	131 ft	14.7 in 380 mm	1.08 lb./ft. 1.60 kg/m
20836436	1-9/16 in 39.7 mm	2 1/4 in 54 mm	232 psi 1.6 MPa	9-7/16 in 240 mm	131 ft	14.7 in 380 mm	1.11 lb./ft. 1.65 kg/m
20836437	2 in 50.8 mm	2 3/4 in 70 mm	232 psi 1.6 MPa	11-13/16 in 300 mm	100 ft	11.8 in 304 mm	1.48 lb./ft. 2.20 kg/m
20836439	2-5/8 in 66.7 mm	3 1/2 in 89 mm	232 psi 1.6 MPa	17-3/4 in 450 mm	131 ft	11.8 in 304 mm	2.22 lb./ft. 3.30 kg/m
20836440	3 in 76.2 mm	3 7/8 in 99 mm	232 psi 1.6 MPa	19-11/16 in 500 mm	100 ft	8.8 in 228 mm	2.55 lb./ft. 3.80 kg/m
20836442	3-1/8 in 79.4 mm	4 1/4 in 108 mm	232 psi 1.6 MPa	22-1/16 in 560 mm	131 ft	8.8 in 228 mm	3.23 lb./ft. 4.80 kg/m
20836444	4 in 101.6 mm	5 1/8 in 130 mm	232 psi 1.6 MPa	27-9/16 in 700 mm	100 ft	8.8 in 228 mm	4.30 lb./ft. 6.40 kg/m
